HOLT CAT® is your local dealer for O&K® Mining-Hydraulic Excavators for the same 118 counties from Brownsville to Texarkana that we service for Caterpillar®. O&K has more than 40 years experience in the design of hydraulic shovels and excavators enabling them to build machines that provide Reliability, Productivity and Serviceability. The O&K line has replaced the 5000 series that Caterpillar produced which includes the 5110, 5130, and 5230 model types.
O&K offers the widest range of mining excavators in both front shovel and backhoe configurations in the U.S.
TriPower boosts productivity
Figures that speak for themselves: up to 50% added crowd force and rising thrust across the entire crowd distance, and up to 40% higher lift force plus automatically constant bucket control during horizontal crowd at any height and reach, as well as when lifting and lowering.
Electronic Board Control System
The board control system is a cost-saving diagnostic feature using state-of-the-art electronics to monitor and record important operating and servicing data, displaying the findings on the monitor. As soon as any variances are detected, the operator is alerted visually and audibly. Trouble-shooting is made much easier and downtimes are avoided.
Independent Oil Cooling
Hydraulic oil cooling is completely separate from the main circuits. Two independent thermostat-controlled circuits for the fan and cooler flow means maximum cooling effect, even during breaks. Combined with the patented dual-chamber hydraulic tank, this provides maximum cooling efficiency. The hydraulic system is always working at optimum operating temperature even under extreme conditions.
Electronic Control System PMS
O&K’s patented Pump Managing System PMS with electronic load limit control ensures almost zero-loss conversion of engine power into hydraulic output. PMS continuously evaluates actual engine and hydraulic system operating values against set values and will adjust pump output for ultimate performance. Consequently, available engine power is constantly utilized at the most desired level without overstressing the engine. Other valuable features: variable oil flow control, automatic engine idle, zero-flow and output control. Together with pressure cut-off on the main pumps, the result is unsurpassed hydraulic efficiency.
Advanced in every detail
O&K excavators are renowned for their outstanding features, including electronic-hydraulic servo control for exceptional controllability and low surface pressure on the main rollers for extended service life.
What’s more, state-of-the-art manufacturing techniques significantly reduce the number of weld seams on the undercarriage.
Intelligent End-of-Stroke Damping
Besides maximizing productivity, patented end-of-stroke damping keeps wear to an absolute minimum. Shock loads and vibrations are shielded from the machine and the operator. This is a feature that saves components, extends durability and makes life that much easier for the operator.

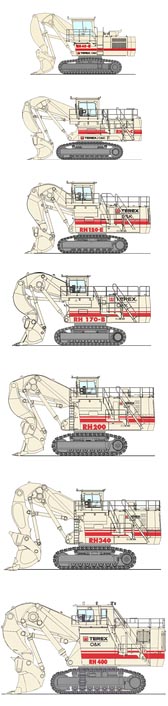

Product Range
RH 40-E
Operating Weight: FS-230,930lb / BH 232,030lb
Shovel: 9.2 yd
Backhoe: 7.8 yd
RH 90-C
Operating Weight: FS-374,780lb / BH-379,190lb
Shovel: 13.1 yd
Backhoe: 13.1 yd
RH 120-E
Operating Weight: FS-626,330lb / BH-632,940lb
Shovel: 21.6 yd
Backhoe: 22.2 yd
RH 170 / RH170-B
Operating Weight: FS-868,170lb / BH-869,490lb
Shovel: 28.8 yd
Backhoe: 869,490
RH 200
Operating Weight: FS-1,157,420lb / BH-1,183,870lb
Shovel: 34 yd
Backhoe: 36.6 yd
RH 340
Operating Weight: FS-1,246,130lb / BH-1,251,110lb
Shovel: 44.5 yd
Backhoe: 44.5 yd
RH 340-B
Operating Weight: FS-1,246,130lb / BH-1,251,110lb
Shovel: 44.5 yd
Backhoe: 44.5 yd
RH 400
Operating Weight: FS-2,160,500lb
Shovel: 59 yd
