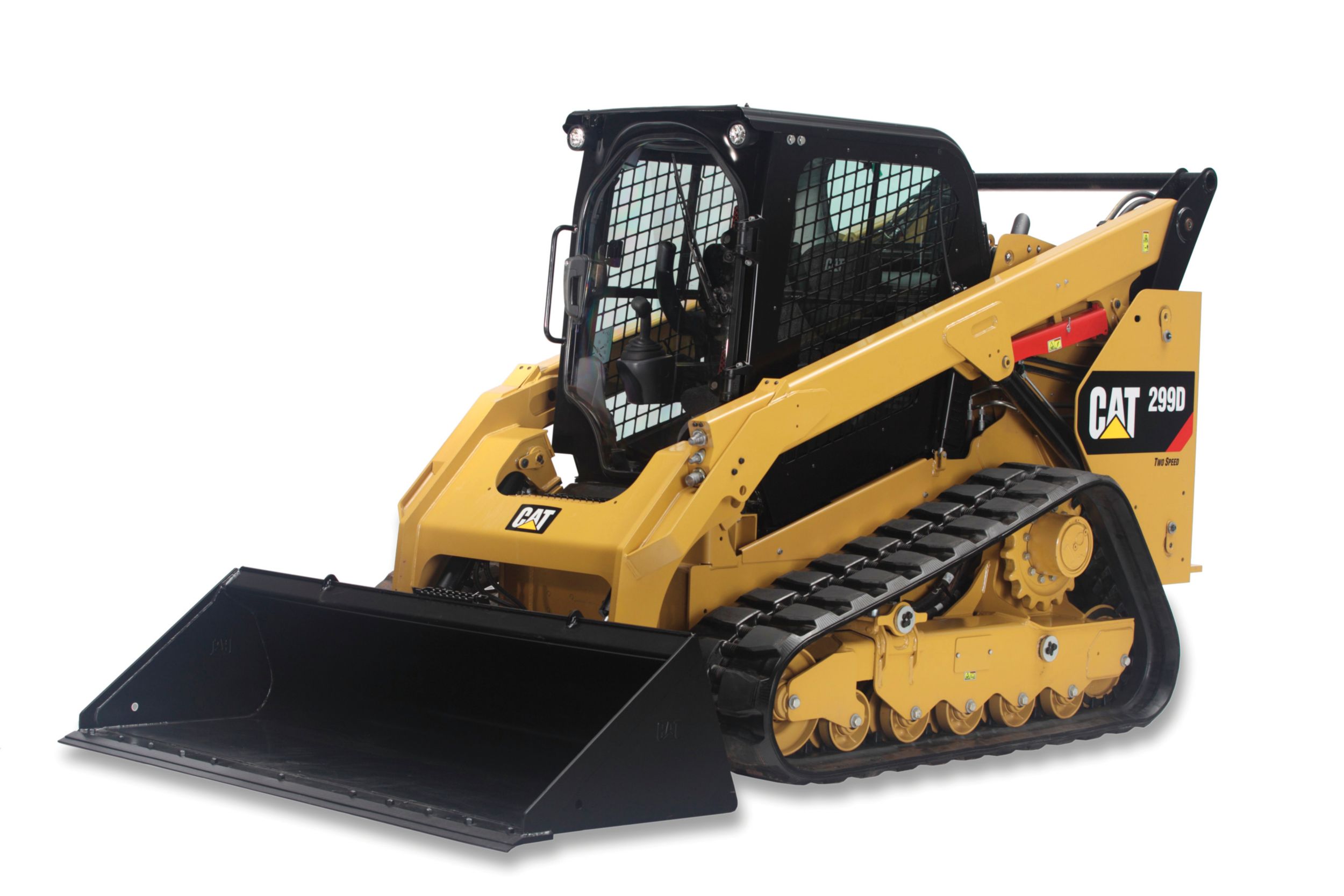

Caterpillar - 299D Compact Track Loader

The Cat 299D Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.

Rent this Equipment
Engine Model Cat C3.8 DIT (Turbo)
Net Power 95.0 hp
Rated Operating Capacities: 50% Tipping Load 4250.0 lb
Rated Operating Capacities: 35% Tipping Load 2975.0 lb
Gross Power 98.0 hp
Gross Power SAE J1995 98.0 hp
Net Power SAE 1349 95.0 hp
Displacement 232.0 in3
Bore 3.9 in
Stroke 4.7 in
Travel Speed Forward 5.2 mph
Travel Speed Reverse 5.2 mph
Operating Weight 10718.0 lb
Ground Contact Area 2463.0 in2
Ground Pressure 4.4 psi
Tipping Load 8500.0 lb
Breakout Force, Tilt Cylinder 7552.0 lb
Breakout Force, Lift Cylinder 6122.0 lb
Cooling System 4.1 gal
Engine Crankcase 3.5 gal
Fuel Tank 32.2 gal
Hydraulic System 14.5 gal
Hydraulic Tank 10.3 gal
Length of Track on Ground 69.6 in
Overall Length of Track 89.4 in
Length w/Bucket on Ground 151.8 in
Length w/o Bucket 123.5 in
Height to Top of Cab 83.7 in
Vehicle Width 78.0 in
Max. Overall Height 158.4 in
Bucket Pin Height at Max. Lift 125.6 in
Bucket Pin Height at Carry Pos. 7.9 in
Reach at Max. Lift/Dump 30.6 in
Clearance at Max. Lift/Dump 94.3 in
Ground Clearance 8.7 in
Departure Angle 30°
Maximum Dump Angle 52°
Turn Radius from Ctr - Rear 73.4 in
Turn Radius from Ctr - Coupler 58.0 in
Turn Radius from Ctr - Bucket 91.2 in
Max. Reach w/Arms Parallel 50.2 in
Rack Back Angle at Max Height 83°
Hydraulic Flow Standard
Bucket Pin Reach at Max Lift 15.6 in
Loader Hydraulic Pressure 3335.0 psi
Loader Hydraulic Flow 23.0 gal/min
Hydraulic Power 44.0 hp
ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level I
FOPS Level II ISO 3449:2005 Level II
Rated Operating Capacity with Optional Counterweight 4500.0 lb
Travel Speed Reverse - 2-Speed 8.4 mph
Travel Speed Forward - 2-Speed 8.4 mph
Hydraulic Flow High Flow XPS
Max. Loader Hydraulic Pressure 4061.0 psi
Max. Loader Hydraulic Flow 32.0 gal/min
Hydraulic Power (calculated) 76.0 hp
