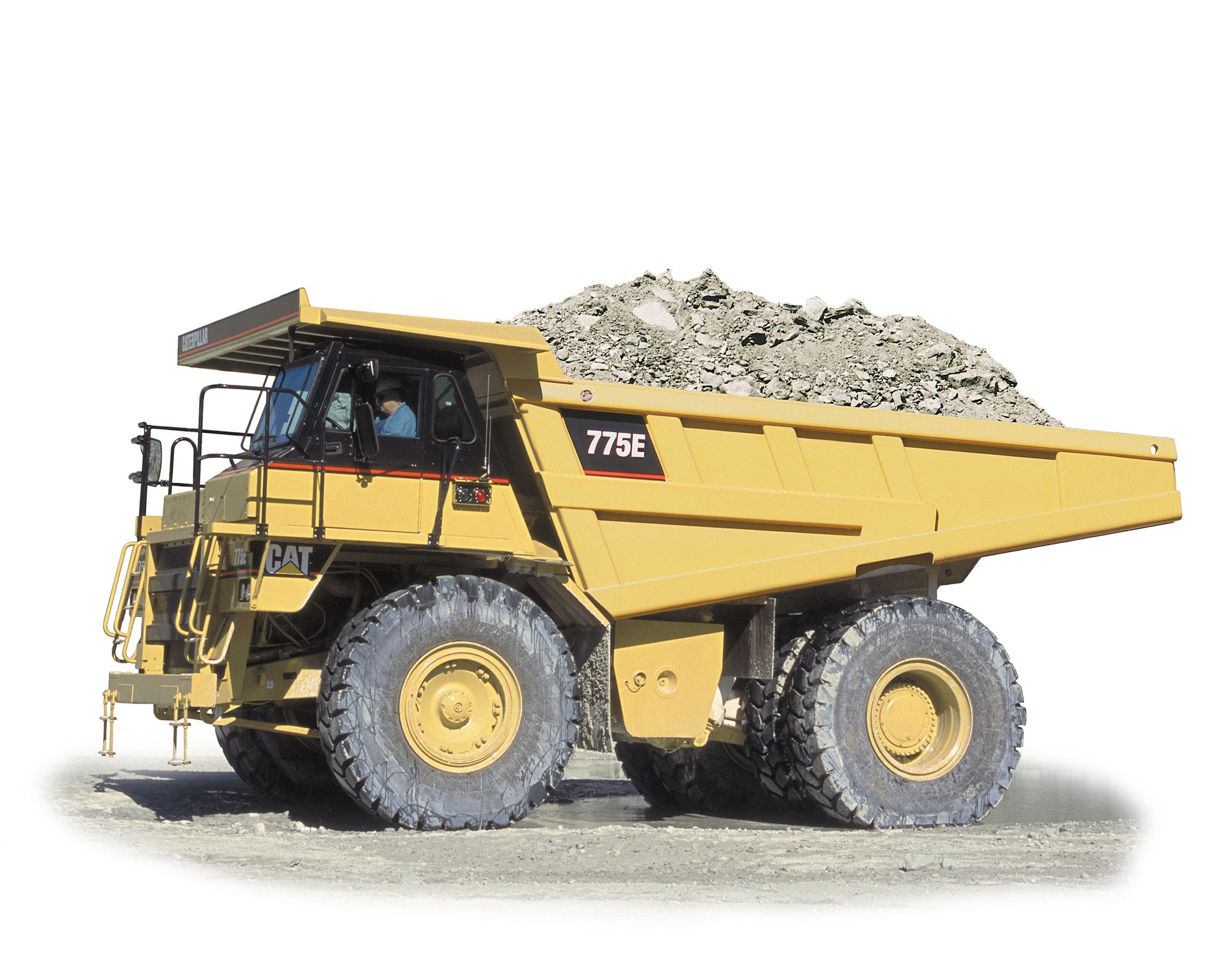

Caterpillar - 775E Off-Highway Truck

Rent this Equipment
Nominal Payload Class (100%) 70.0 tons
Engine Model Cat® 3412E
Top Speed – Loaded 41.1 mph
Rated Engine Speed 2000.0 RPM
Gross Power – SAE J1995 760.0 hp
Net Power – SAE J1349 730.0 hp
Net Power - Cat 730.0 hp
Flywheel Power 730.0 hp
Net Power – ISO 9249 730.0 hp
Net Power – 80/1269/EEC 730.0 hp
Number of Cylinders 12
Torque Rise 33.0 %
Bore 5.4 in
Stroke 6.0 in
Displacement 1649.0 in3
Body Capacity - Struck 41.07 yd3
Body Capacity – SAE 2:1 54.3 yd3
Maximum Capacity 70.0 tons
Steer Angle 31.0 Degrees
Struck 42.8 yd3
Heaped 2:1 (SAE) 53.9 yd3
Struck 41.1 yd3
Heaped 2:1 (SAE) 54.3 yd3
Front Axle – Empty 44.3 %
Front Axle – Loaded 31.2 %
Rear Axle – Empty 55.7 %
Rear Axle – Loaded 68.8 %
Forward 1 6.2 mph
Forward 2 8.6 mph
Forward 3 11.6 mph
Forward 4 15.6 mph
Forward 5 21.1 mph
Forward 6 28.5 mph
Forward 7 41.1 mph
Reverse 7.5 mph
Differential Ratio 3.64:1
Planetary Ratio 4.80:1
Total Reduction Ratio 17.48:1
Brake Surface – Front 216.0 in2
Brake Surface – Rear 9496.0 in2
Brake Standards ISO 3450:1996
Fuel Tank 185.0 gal
Cooling System 40.0 gal
Differentials and Final Drives 41.0 gal
Steering Tank 9.0 gal
Steering System (Includes Tank) 16.0 gal
Torque Converter / Brake / Hoist Hydraulic Tank 35.0 gal
Brake / Hoist System (Includes Tank) 81.0 gal
Torque Converter / Transmission System (Includes Sump) 19.0 gal
Pump Flow – High Idle 148.0 gal/min
Relief Valve Setting – Raise 2750.0 psi
Relief Valve Setting – Lower 500.0 psi
Body Raise Time – High Idle 9.5 Seconds
Body Lower Time – Float 12.5 Seconds
Effective Cylinder Stroke - Front 8.2 in
Effective Cylinder Stroke - Rear 5.9 in
Rear Axle Oscillation 8.0 Degrees
Body 21400.0 lb
Height - Top of ROPS 12.92 ft
Overall Body Length 28.33 ft
Inside Body Length 21.45 ft
Overall Length 30.21 ft
Wheelbase 13.75 ft
Rear Axle to Tail 9.42 ft
Ground Clearance 2.23 ft
Dump Clearance 2.17 ft
Loading Height – Empty 12.83 ft
Inside Body Depth - Max 6.25 ft
Overall Height – Body Raised 28.86 ft
Operating Width 16.65 ft
Centerline Front Tire Width 10.74 ft
Engine Guard Clearance 2.25 ft
Overall Canopy Width 15.5 ft
Inside Body Width 13.08 ft
Front Canopy Height 14.47 ft
Rear Axle Clearance 2.17 ft
Centerline Rear Dual Tire Width 9.58 ft
Overall Tire Width 13.95 ft
Standard Tire Standard: 24.00-R35 (E4)
ROPS/FOPS Standards Meets SAE J1040 MAY94 and ISO 3471:1994
Sound Standards Meets SAE J88 APR95
Steering Standards Meets SAE J1511 FEB94 and ISO 5010:1992
Steer Angle 31.0 Degrees
Turning Circle Clearance Diameter 78.9 ft
Body 28814.0 lb
