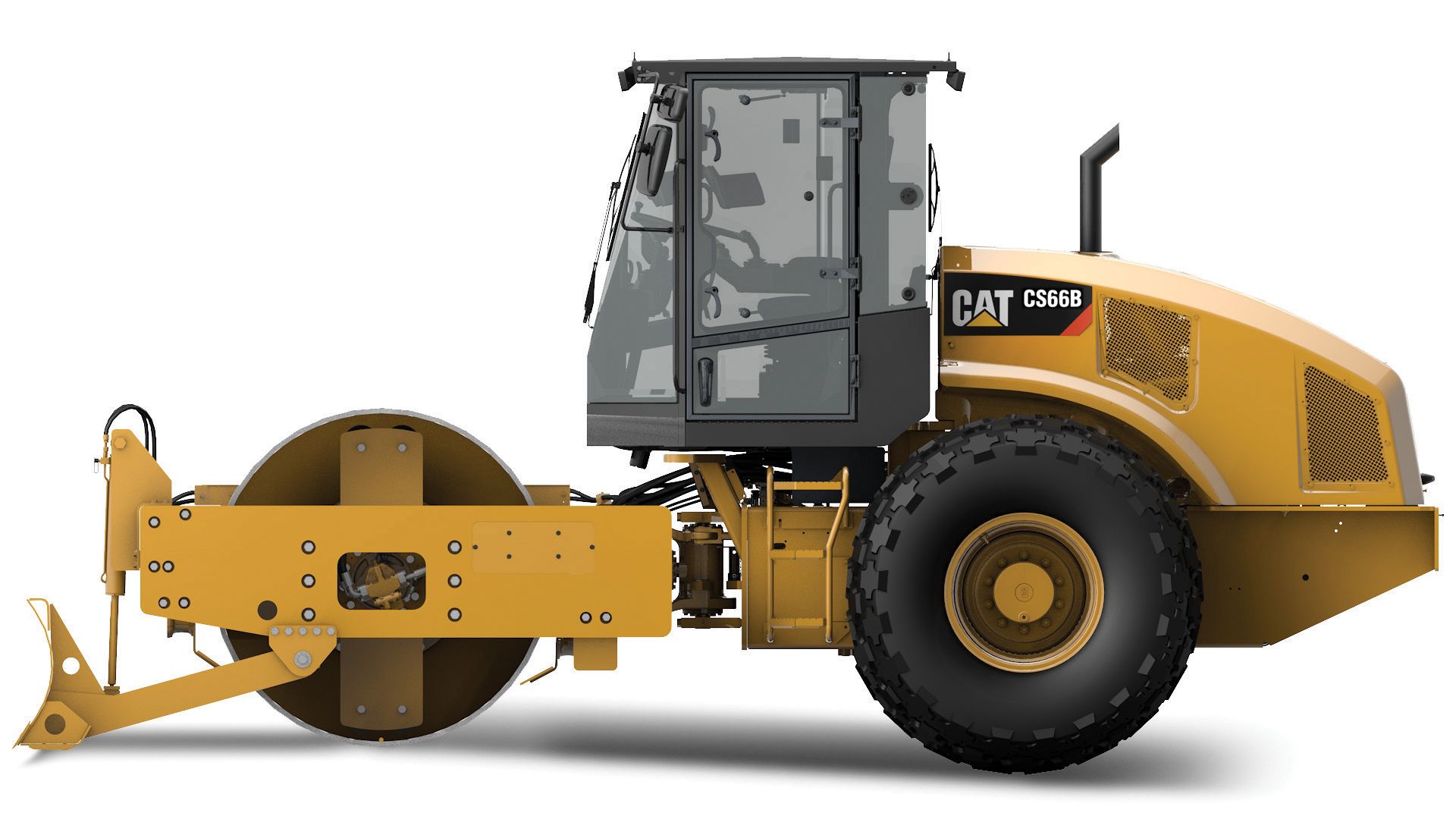

Caterpillar - CS66B Vibratory Soil Compactor

Powered by the 117 kW (156.9 hp) Cat® C4.4 engine, the CS66B provides exceptional performance for granular soil compaction applications.

Rent this Equipment
Brochure / Documentation - C756078
Operating Weight - With Cab 27245.0 lb
Weight - Drum with Cab 16214.0 lb
Compaction Width 84.0 in
Turning Radius - Inside Drum Edge 12.08 ft
Ground Clearance 17.4 in
Static Linear Load - With Cab 193.0 lb/in
Static Linear Load - With ROPS/FOPS 164.1 lb/in
Travel Speed - Maximum 7.0 mile/h
Gross Power 157.0 hp
Engine Model Cat C4.4 with ACERT
Overall Width - With Blade Option 8.25 ft
Height - With ROPS/FOPS or Cab 10.25 ft
Optional Blade Height 27.1 in
Wheelbase 9.58 ft
Overall Length 19.25 ft
Drum Width 84.0 in
Drum Diameter 60.4 in
Overall Length - With Blade Option 21.0 ft
Overall Width 7.58 in
Vibratory Frequency - Standard 30.5 Hz (1830 vpm)
Centrifugal Force - Minimum 31670.0 lb
Centrifugal Force - Maximum 67600.0 lb
Nominal Amplitude - High 0.083 in
Nominal Amplitude - Low 0.039 in
Variable Frequency Option Range 23.3 - 30.5 Hz (1400-1830 vpm)
Tires 23.1 x 26
Fuel Tank Capacity 64.0 gal
