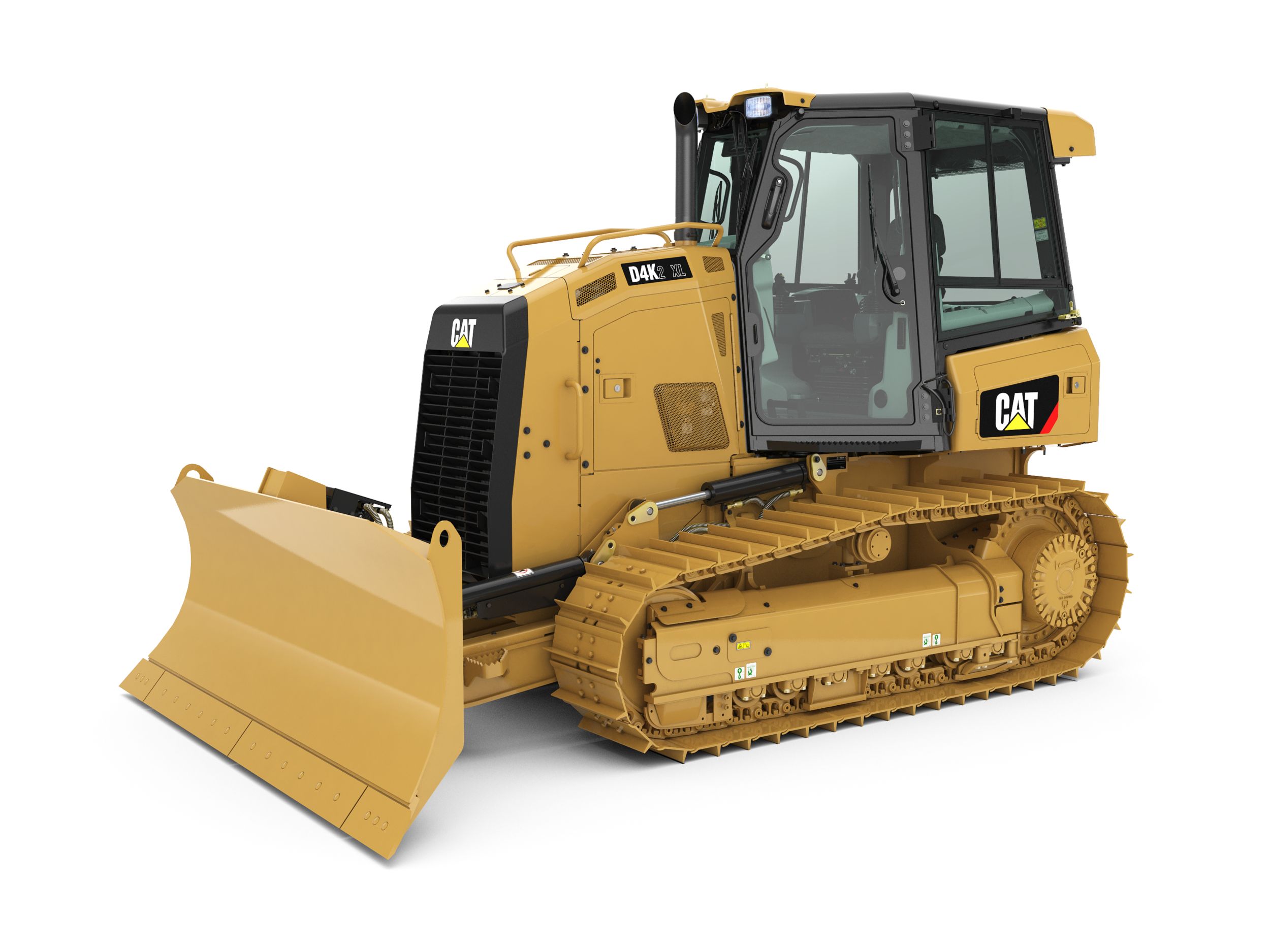

Caterpillar - D4K2 Track-Type Tractor

Experience the best finish grading tractors in the industry. The Cat® D3K2, D4K2 and D5K2 Track-Type Tractors deliver superior performance and comfort with lower operating costs.

Rent this Equipment
Brochure / Documentation - C10378921 Brochure / Documentation - CM20150114-49976-57547
Engine Model Cat C4.4
Power - Net 92.0 hp
Displacement 269.0 in3
Bore 4.13 in
Stroke 5.0 in
Rated Net Power - 2,200 rpm - ISO 9249/EEC 80/1269 92.0 HP
ISO 9249 92.0 hp
Note Engine meets U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final) emission standards.
Drive Pumps 1
Relief valve settings 7033.0 psi
Maximum travel speed - reverse 6.2 mph
Maximum travel speed - forward 5.6 mph
Track motors 2
Operating Weight - XL 18007.0 lb
Operating Weight - LGP 18686.0 lb
Transmission/hydraulic tank 15.7 gal
Final drives, LGP (each side) 2.6 gal
Fuel Tank 51.5 gal
Crankcase and filter 2.91 gal
Final drives, XL (each side) 2.6 gal
Cooling System 5.92 gal
Pump Output 17.7 gal/min
Relief valve setting 2988.0 psi
Ground pressure - XL 5.6 psi
Track gauge - LGP 68.0 in
Shoe width - XL 18.0 in
Ground contact area - XL 3206.0 in2
Ground pressure - LGP 4.2 psi
Length of track on ground - XL 89.0 in
Shoe width - LGP 25.0 in
Ground contact area - LGP 4425.0 in2
Track gauge - XL 61.0 in
Length of track on ground - LGP 89.0 in
Type Parallelogram
Number of Shanks 3
Height 6.5 in
Weight 1222.0 lb
Maximum reach at ground line 23.5 in
Maximum digging depth 13.3 in
Maximum ground clearance under tip 17.6 in
Overall width 67.3 in
Weight 1345.0 lb
Winch Drive Hydrostatic
Control Hydraulic
Speed Variable
Drum diameter 10.0 in
Throat clearance 6.75 in
Overall width 29.2 in
Maximum line pull - full drum 25000.0 lb
Maximum line speed - bare drum 131.0 ft/min
Winch length 27.76 in
Drum width 10.8 in
Drum capacity - recommended cable 371.0 ft
Rope diameter - optional 0.75 in
Maximum line pull - bare drum 40000.0 lb
Drum capacity - optional cable 256.0 ft
Maximum line speed - full drum 207.0 ft/min
Rope diameter - recommended 0.63 in
Sound Levels - ISO 6396:2008 79.0 dB(A)
Track Gauge - LGP 67.9 in
BLADE: Blade Width at Maximum Angle - XL 100.1 in
Tractor Height - LGP 108.8 in
BLADE: Maximum Tilt - LGP 17.2 in
BLADE: Digging Depth - XL 22.5 in
BLADE: Blade Width at Maximum Angle - LGP 113.1 in
BLADE: Blade Cutting Edge Angle, Adjustable - Intermediate 52° to 58°
BLADE: Digging Depth - Intermediate 23.2 in
BLADE: Blade Lift Height - Intermediate 29.3 in
BLADE: Maximum Tilt - Intermediate 17.6 in
BLADE: Blade Lift Height - LGP 27.9 in
Track Gauge - XL 61.0 in
Width - Tractor - Standard Shoes - No Blade - LGP 92.9 in
Width - Tractor - Standard Shoes - No Blade - XL 79.1 in
Overall Length - With Blade - LGP 168.3 in
BLADE: Blade Capacity (SAE) - LGP 2.42 yd³
Note (1) Specifications shown are for machine equipped with dozer blade, canopy ROPS, back-up alarm, operator, coolant, lubricants and full fuel tank.
BLADE: Blade Lift Height - XL 29.3 in
Length - Basic Tractor - Without Blade - LGP 128.9 in
Length - Basic Tractor - Without Blade - XL 128.9 in
BLADE: Blade Capacity (SAE) - Intermediate 1.96 yd³
Sound Levels - SAE J1166 FEB2008 79.0 dB(A)
BLADE: Blade Width - XL 109.5 in
BLADE: Blade Height - LGP 35.8 in
Tractor Height - XL 108.8 in
BLADE: Blade Width at Maximum Angle - Intermediate 105.1 in
ROPS ISO 6396:2008
FOPS ISO 3449:2005 Level II
BLADE: Maximum Tilt - XL 15.2 in
Note (2) Enclosed cab adds 225 kg (495 lb).
Ground Clearance - XL 13.0 in
BLADE: Blade Height - Intermediate 33.9 in
BLADE: Blade Width - LGP 124.0 in
Number of rollers on each side 7
BLADE: Maximum Angle (either side) - Intermediate 25°
BLADE: Blade Width - Intermediate 115.0 in
BLADE: Maximum Angle (either side) - LGP 25°
BLADE: Digging Depth - LGP 23.2 in
Number of Shoes - Each Side - SystemOne Undercarriage 38
BLADE: Blade Cutting Edge Angle, Adjustable - LGP 52° to 58°
Ground Clearance - LGP 13.0 in
BLADE: Maximum Angle (either side) - XL 25°
BLADE: Blade Height - XL 39.8 in
Diesel Exhaust Fluid (DEF) Tank 4.9 gal (US)
BLADE: Blade Cutting Edge Angle, Adjustable - XL 52° to 58°
BLADE: Blade Capacity (SAE) - XL 2.59 yd³
Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage 43
Overall Length - With Blade - XL 168.3 in
