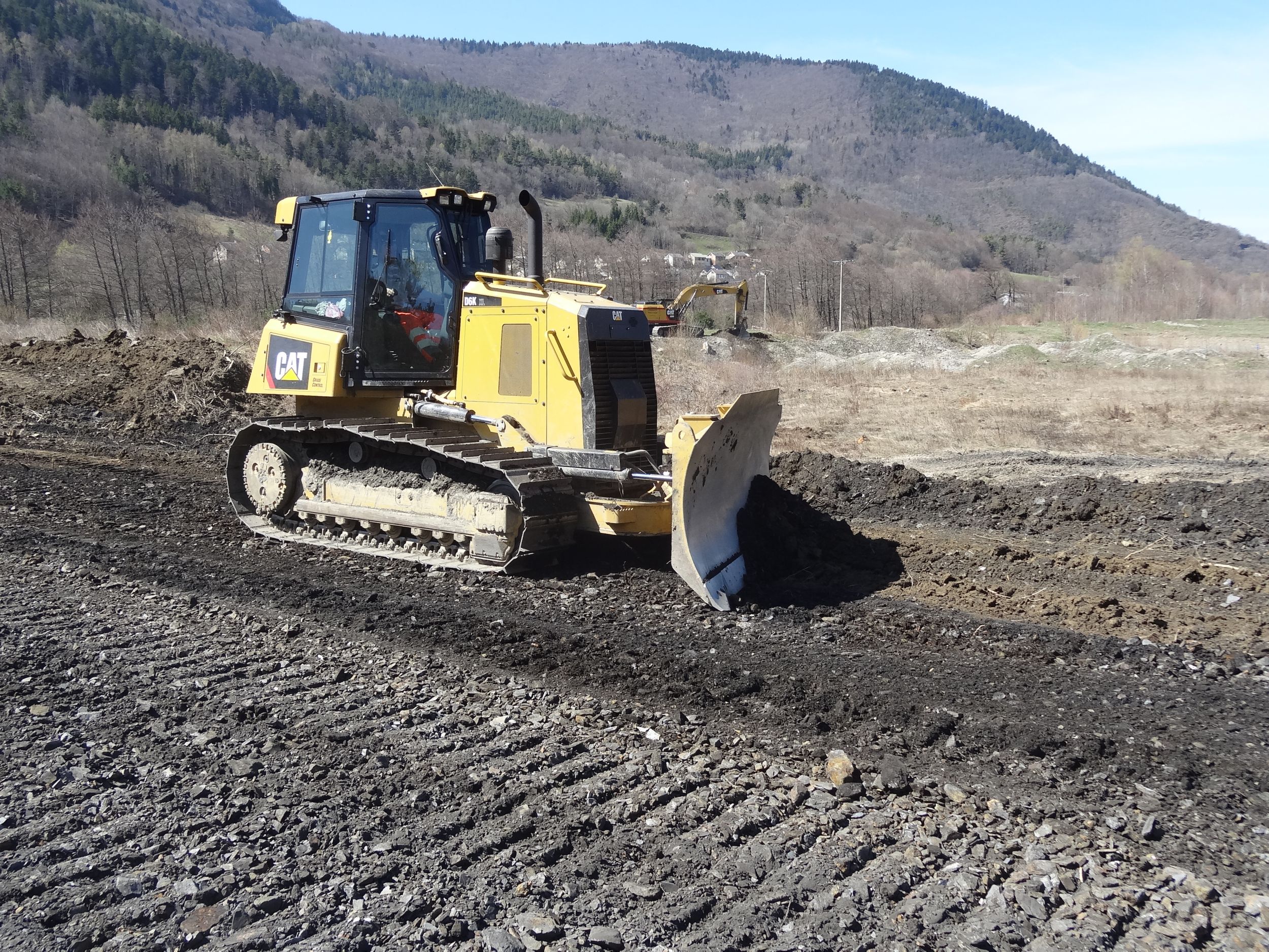

Caterpillar - D6K Track-Type Tractor

The new Cat® D6K dozer combines best-in-class fuel efficiency with the power and precision to excel in a wide range of jobs. This versatile bulldozer features a reliable power train and an overall design that is optimized for finish grading. And to boost your grading productivity even more, choose technology options like new Cat GRADE with Slope Assist™ that help you get more quality work done in less time.

Rent this Equipment
Brochure / Documentation - CM20170421-33177-24981 Brochure / Documentation - CM20170601-32532-10869
Engine Model C7.1 ACERT
Flywheel Power 130.0 hp
Emissions China Nonroad Stage III and equivalent to U.S. EPA Tier 3/EU Stage IIIA emission standards
Engine Power - 2,000 rpm - ISO 14396 157.0 HP
Net Power - 2,200 rpm - ISO 9249 130.0 HP
Stroke 159.0 in
Displacement 160.0 in3
Net Power - 2,200 rpm - SAE J1349 128.0 HP
Fuel Tank 69.0 gal
Cooling System 7.9 gal
Operating Weight 31600.0 lb
Operating Weight - XL 29800.0 lb
Operating Weight - LGP 31600.0 lb
Note Weights with Heavy Duty Track
LGP 4.98 yd³
XL 4.26 yd³
Note *ISO 9246
Engine Crankcase 4.8 gal
Hydraulic Tank 16.9 gal
With the Following Attachment, Add to Basic Tractor Length: Ground Clearance from Ground Face of Shoe (per SAE J1234) 14.0 in
XL 10.5 ft
Ground Pressure (ISO 16754) 5.8 psi
Width - Tractor - Standard Shoes - With VPAT Blade Angled 25° 114.0 in
Length - Track on Ground 104.0 in
Ground Pressure (ISO 16754) 4.5 psi
Transmission Type Hydrostatic
Length - Track on Ground 104.0 ft
Length - Basic Tractor - With C-Frame and Drawbar 181.0 in
Machine Height - Grouser Tip - ROPS Cab 117.0 in
LGP 12.0 ft
Width - Tractor - Standard Shoes - Without Blade 92.0 in
Width - Standard Track - Heavy Duty 30.0 in
Width - Tractor - Standard Shoes - Without Blade 109.0 in
With the Following Attachment, Add to Basic Tractor Length: VPAT Blade, Straight 15.0 in
Width - Tractor - Standard Shoes - With Foldable Blade in Transport Position 112.0 in
With the Following Attachment, Add to Basic Tractor Length: VPAT Blade, Angled 25° (Standard and Foldable) 40.0 in
With the Following Attachment, Add to Basic Tractor Length: VPAT Blade, Angled 25° (Standard and Foldable) 40.0 in
Final Drives (each) 4.9 gal
Length - Basic Tractor - With C-Frame and Drawbar 181.0 in
Machine Height - Grouser Tip - ROPS Cab 117.0 in
Width - Standard Track - Heavy Duty 22.0 in
Reverse 0-10 km/h (0-6.2 mph)
Note Dimensions with Heavy Duty Track
Net Power - 2,200 rpm - ISO 9249 (DIN) 132.0 HP
Width - Tractor - Standard Shoes - With VPAT Blade Angled 25° 131.0 in
Width - Tractor - Standard Shoes - With Foldable Blade in Transport Position 93.0 in
With the Following Attachment, Add to Basic Tractor Length: VPAT Blade, Straight 15.0 in
With the Following Attachment, Add to Basic Tractor Length: Ground Clearance from Ground Face of Shoe (per SAE J1234) 14.0 in
Forward 0-10 km/h (0-6.2 mph)
Note Dimensions with Heavy Duty Track
