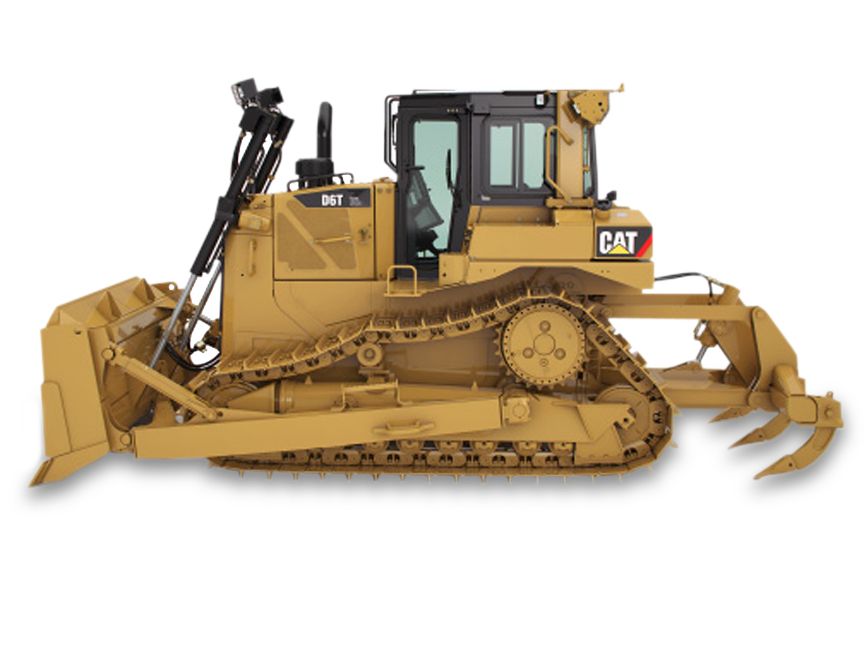

| Engine Model |
Cat® C9.3 ACERT™ |
| Flywheel Power |
205.0 hp |
| Operating Weight |
46158.0 lb |
| Net Power – ISO 9249 |
205.0 hp |
| Net Power – SAE J1349 |
205.0 hp |
| Bore |
4.5 in |
| Stroke |
5.9 in |
| Displacement |
567.0 in3 |
| 1.5 Forward |
2.3 mph |
| 2.0 Forward |
3.2 mph |
| 2.5 Forward |
4.1 mph |
| 3.0 Forward |
5.3 mph |
| 3.5 Forward |
7.1 mph |
| 1.5 Reverse |
3.0 mph |
| 2.0 Reverse |
4.1 mph |
| 2.5 Reverse |
5.2 mph |
| 3.0 Reverse |
5.3 mph |
| 3.5 Reverse |
9.0 mph |
| Drawbar Pull – 1.5 Forward |
79910.0 lb |
| Drawbar Pull – 2.0 Forward |
46410.0 lb |
| Drawbar Pull – 2.5 Forward |
46410.0 lb |
| Drawbar Pull – 3.0 Forward |
25360.0 lb |
| Drawbar Pull – 3.5 Forward |
25360.0 lb |
| Shoe Type |
Moderate Service |
| Width of Shoe – LGP |
36.0 in |
| Shoes/Side – LGP |
45 |
| Grouser Height |
2.6 in |
| Pitch |
8.0 in |
| Ground Clearance |
15.0 in |
| Track Gauge – XL |
74.0 in |
| Track on Ground – LGP |
128.0 in |
| Ground Contact Area – XL |
4929.0 in2 |
| Ground Contact Area – LGP |
9223.0 in2 |
| Ground Pressure – LGP |
4.86 psi |
| Track Rollers/Side – LGP |
8 |
| Fuel Tank |
112.0 gal |
| Cooling System |
17.0 gal |
| Engine Crankcase |
6.5 gal |
| Final Drives (each) |
3.6 gal |
| Roller Frames (each) |
6.6 gal |
| Pivot Shaft Compartment |
1.3 gal |
| Hydraulic Tank |
17.3 gal |
| Engine Power – ISO 14396 |
227.0 hp |
| Engine Power – ISO 14396 (DIN) |
230.0 hp |
| Angle Cylinder Flow – VPAT |
45.0 gal/min |
| Pressure Setting – Implement – VPAT |
3540.0 psi |
| Pressure Setting – Implement – Non-VPAT |
3150.0 psi |
| Gross Power – SAE J1995 |
229.0 hp |
| Net Power – 80/1269/EEC |
205.0 hp |
| Weight – With One Shank |
3606.0 lb |
| Powertrain |
39.1 gal |
| Capacity – XL SU Narrow-Blade* |
6.47 yd3 |
| Width – XL SU Narrow-Blade* |
9.8 ft |
| RPM at Rated Engine Speed – Fan |
2135.0 RPM |
| RPM at Rated Engine Speed – Steering |
2854.0 RPM |
| Width of Shoe – XL/XL VPAT |
22.0 in |
| Width of Shoe – XW |
30.0 in |
| Width of Shoe – XW VPAT |
28.0 in |
| Width of Shoe – LGP VPAT |
31.0 in |
| Track Gauge – XL VPAT |
84.0 in |
| Track Gauge – XW |
80.0 in |
| Track Gauge – XW VPAT/LGP/LGP VPAT |
90.0 in |
| Track on Ground – XL/XW |
112.0 in |
| Ground Contact Area – XW |
6680.0 in2 |
| Ground Contact Area – XL VPAT |
4929.0 in2 |
| Ground Contact Area – XW VPAT |
6246.0 in2 |
| Ground Contact Area – LGP VPAT |
7905.0 in2 |
| Ground Pressure – XW |
6.4 psi |
| Ground Pressure – XL |
8.3 psi |
| Ground Pressure – XL VPAT |
9.4 psi |
| Ground Pressure – XW VPAT |
7.5 psi |
| Ground Pressure – LGP VPAT |
6.2 psi |
| Oscillation at Front Idler – XL/XL VPAT/XW VPAT |
4.0 in |
| Oscillation at Front Idler – XW |
3.9 in |
| Oscillation at Front Idler – LGP/LGP VPAT |
4.6 in |
| Bulldozer – Lift – Non-VPAT |
2800.0 psi |
| Bulldozer – Lift – VPAT |
3125.0 psi |
| Bulldozer – Tilt – Non-VPAT |
2800.0 psi |
| Bulldozer – Tilt – VPAT |
3125.0 psi |
| Bulldozer – Angle – VPAT |
3125.0 psi |
| Ripper – Lift – Non-VPAT |
2800.0 psi |
| Ripper – Lift – VPAT |
3125.0 psi |
| RPM at Rated Engine Speed – Implement |
2135.0 RPM |
| Pump Output – Fan |
25.0 gal/min |
| Weight |
2652.0 lb |
| Overall Width |
38.4 in |
| Rope Diameter (recommended) |
0.88 in |
| Maximum Bare Drum – Line Pull |
89800.0 lb |
| Maximum Full Drum – Line Pull |
76300.0 lb |
| Maximum Bare Drum – Line Speed |
130.0 ft/min |
| Maximum Full Drum – Line Speed |
224.0 ft/min |
| Capacity – XL SU-Blade |
6.94 yd3 |
| Capacity – XL A-Blade |
5.14 yd3 |
| Capacity – XL VPAT-Blade |
6.19 yd3 |
| Capacity – XW SU-Blade |
6.6 yd3 |
| Capacity – XW A-Blade |
5.63 yd3 |
| Capacity – XW VPAT-Blade |
6.65 yd3 |
| Capacity – LGP S-Blade |
4.83 yd3 |
| Capacity – LGP A-Blade |
6.82 yd3 |
| Capacity – LGP VPAT-Blade |
5.5 yd3 |
| Width – XL SU-Blade |
10.7 ft |
| Width – XL A-Blade |
13.7 ft |
| Width – LGP VPAT-Blade |
13.7 ft |
| Width – XL VPAT-Blade |
12.8 ft |
| Width – XW SU-Blade |
11.7 ft |
| Width – XW A-Blade |
14.8 ft |
| Width – LGP A-Blade |
16.7 ft |
| Width – LGP S-Blade |
13.3 ft |
| Width – XW VPAT-Blade |
13.7 ft |
| Pocket Spacing |
39.4 in |
| Shank Gauge |
78.8 in |
| Operating Weight – LGP A |
51769.0 lb |
| Shipping Weight – LGP A |
43050.0 lb |
| Net Power – ISO 9249 (DIN) |
208.0 hp |
| Pump Output – Steering |
52.0 gal/min |
| Pump Output – Implement |
54.0 gal/min |
| Fine Grading AR |
n/a |
| Cable Ferrule Size (O.D. × Length) |
54 mm × 67 mm (2.1 in × 2.6 in) |
| Winch Drive |
Mechanical |
| Track Rollers/Side – XL/XW |
7 |
| Type |
Mechanical |
| Emissions |
U.S. EPA Tier 4 Interim/EU Stage IIIB |
| Control |
Electric |
| Carrier Rollers/Side |
1 |
| Shank Section |
74 mm × 175 mm (2.9 in × 6.9 in) |
| Ramp Angle |
26 degrees |
| Shoes/Side – XL/XW |
41 |
| Steering |
5800.0 psi |
| Lift Cylinder Flow |
50.0 gal/min |
| Tilt Cylinder Flow |
29.0 gal/min |
| Ripper Cylinder Flow |
50.0 gal/min |
| Winch Model |
PA56 |
| Oil Capacity |
17.8 gal |
| Winch and Bracket Length |
47.8 in |
| Winch Case – Length |
35.5 in |
| Winch Case – Width |
34.3 in |
| Increased Tractor Length – XL/XW |
20.4 in |
| Increased Tractor Length – LGP |
14.4 in |
| Drum Diameter |
10.0 in |
| Drum Width |
12.4 in |
| Flange Diameter |
19.9 in |
| Drum Capacity – 22 mm (0.88 in) |
281.0 ft |
| Drum Capacity – 25 mm (1.0 in) |
218.0 ft |
| Type |
Fixed Parallelogram |
| Number of Pockets |
3 |
| Overall Beam Width |
87.0 in |
| Beam Cross Section |
219 × 254 mm (8.8 × 10 in) |
| Maximum Clearance Raised (under tip, pinned in bottom hole) |
20.2 in |
| Maximum Penetration |
18.0 in |
| Maximum Penetration Force |
14557.0 lb |
| Pryout Force |
20137.0 lb |
| Weight – Each Additional Shank |
163.0 lb |
| Operating Weight – XL A |
46623.0 lb |
| Shipping Weight – XL A |
39106.0 lb |
| Operating Weight – XL SU |
46158.0 lb |
| Shipping Weight – XL SU |
39106.0 lb |
| Operating Weight – XL VPAT |
52168.0 lb |
| Shipping Weight – XL VPAT |
44941.0 lb |
| Operating Weight – XW A |
48652.0 lb |
| Shipping Weight – XW A |
40927.0 lb |
| Operating Weight – XW SU |
48036.0 lb |
| Shipping Weight – XW SU |
40927.0 lb |
| Operating Weight – XW VPAT |
53158.0 lb |
| Shipping Weight – XW VPAT |
45841.0 lb |
| Operating Weight – LGP S |
49489.0 lb |
| Shipping Weight – LGP S |
43050.0 lb |
| Operating Weight – LGP VPAT |
54165.0 lb |
| Shipping Weight – LGP VPAT |
46879.0 lb |
| ROPS/FOPS |
ROPS meets criteria ISO 3471:2008/FOPS meets ISO 3449:2005 Level II. |
| Cab |
Meets appropriate standards as listed below. |
| Brakes |
Brakes meet the International Standard ISO 1065:2008. |
